Resta Highly productive wrapping machine H288 RMT


Machine to wrap mattresses at the very end of a production line

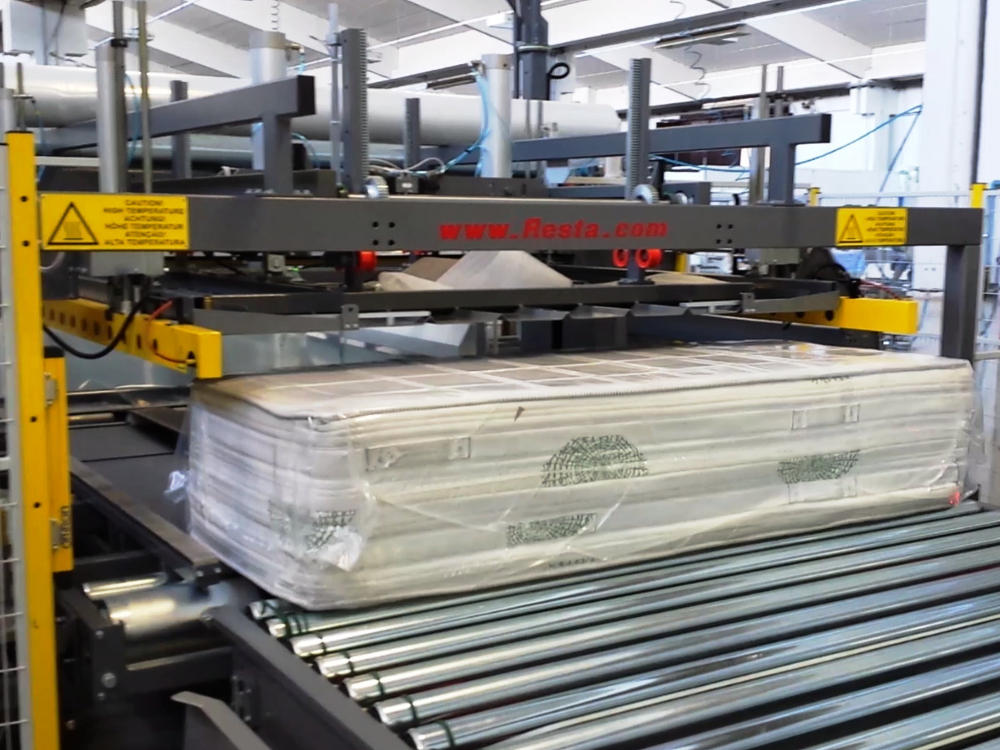

The automatic wrapping machine model Resta H288 RMT is a unit expressly engineered to wrap the mattresses approaching the final part of a mattress production line.
Equipped with a self-adjusting press, the H288 RMT can handle any kind of mattress in any sizes in a fully automatic mode. Furthermore the hoist for the insertion of the polyethylene rolls enables to extremely reduce their manual handling. The structure holding the polyethylene rolls can also accommodate boot film roll holders which can be used or excluded according to the programming of the production cycle.
The press that can be disconnected and the infeed belt conveyor system allow to wrap even divan bases.
This highly versatile and productive machine is equipped with teflon-coated sealing bars with low maintenance. Thanks to its pusher the machine can wrap small-sized mattresses, standard mattresses, latex and heavy mattresses without changing any adjustments. The touch panel screen
guarantees a user-friendly interface.
The sturdiness of Resta wrappers is synonymous of long life and reliability since ever.
All Resta wrappers, besides being able to run both in manual and/or automatic mode, are also preset to be interfaced to operating systems such as the bar code or RFID systems inside a mattress production line.
The long-term availability of the spare parts, the Resta technicians’ experience and the telephone service in foreign languages for free are our strengths.

Data Sheet

Technical specifications

  • Weight: 4100 Kg
  • Consumption: 11 Kw
  • Compressed air: 6-10 bar
  • Voltage: 400V – 3PH 50Hz
  • Mattress max. height: 450mm. (550mm. on request)
  • Mattress/divan bases max. dimensions: 2000 x 2200mm.
  • Production: (8 hrs.): 800/1000 units


  • 2 or 4 piston press
  • Reinforced hoist
  • Press higher clearance for mattresses up to 550mm. high
  • Kit for the removal of polyethylene waste
